Ranigun Irrigation Systems

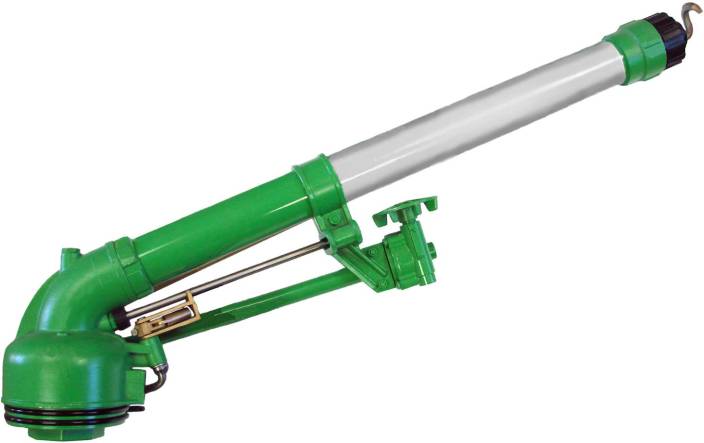

Mariner: Imported from Italy

Mariner is a full and part circle sprinkler. It can be equipped with nozzles of various diameters and an adjustable jet-breaker which provides a light and uniform rainfall all over the watered area. Its sizes and features have been designed to obtain the highest watering efficiency. It has a standard elevation angle of 25 degrees but can be supplied with 'flip' nozzles which give 22 or 28 degree elevations.

  • Available in 2½” BSP/NPT Female Thread Connection.
  • Both Part Circle & Full Circle adjustments.
  • Adjustable Jet breaker to provide uniform distribution.
  • Equipped with interchangeable nozzles of different sizes for various applications.
  • Inner rotating system supported by stainless steel ball bearing to guarantee no strain and no oxidation due to humidity.

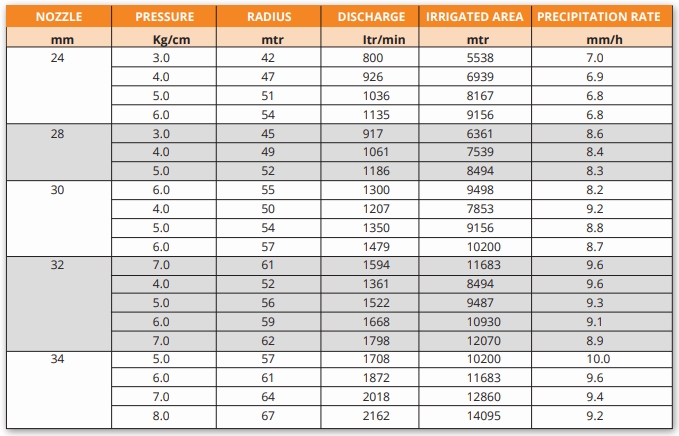

Performance Data:

Skipper

Skipper is a full and part circle rain gun. It can be equipped with nozzles of various diameters and an adjustable jet-breaker which provides a light and uniform rainfall all over the watered area. Its sizes and features have been designed to obtain the highest watering efficiency. It has a standard elevation angle of 25 degrees but can be supplied with 'flip' nozzles which give 22 or 28 degree elevations. Note that the Skipper is a gear driven sprinkler and with its smooth rotation does not cause the vibration damage to supporting infrastructure that similar sized impact sprinklers do.

Features & Specifications

  • Available in 1 ½” BSP/NPT Female Thread Connection.
  • Both part Circle & Full Circle adjustment..
  • Adjustable Jet breaker to provide uniform distribution.
  • Equipped with interchangeable nozzles of different sizes for various applications.
  • Inner rotating system supported by stainless steel ball bearing to guarantee no strain and no oxidation due to humidity.

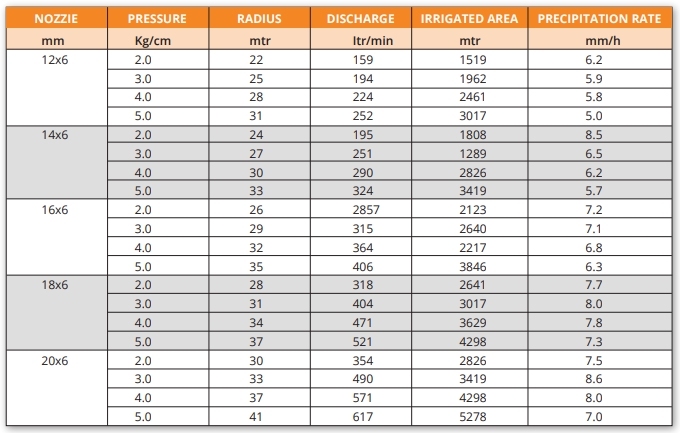

Performance Data:

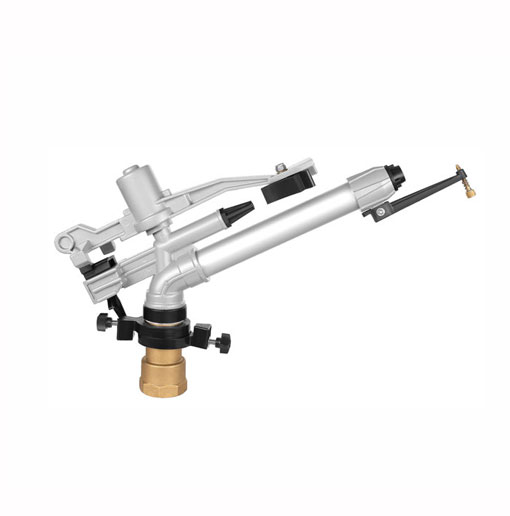

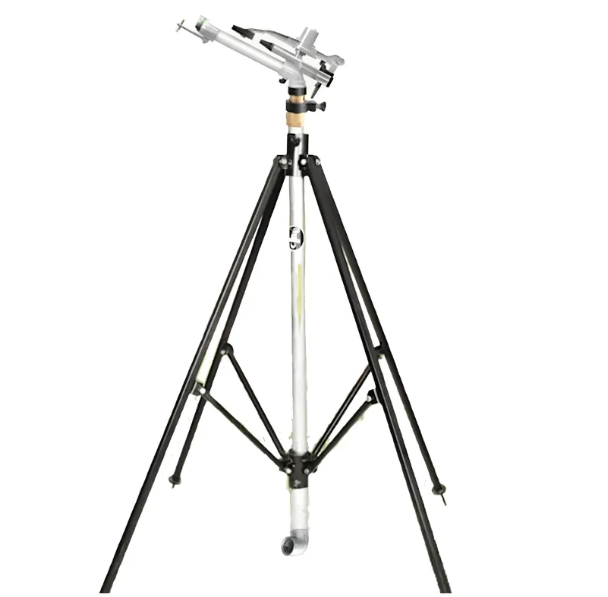

Flamingo Raingun

This is a large sized rain-gun that offers maximum coverage radius at equivalent pressure levels as against other rain gun offerings in the market Integrated with a specially extruded Aluminium pipe with fins for larger coverage, it is competitively priced with its own 4-legged stand for ease of operation.

Features & Specifications

  • Available in 2" BSP/NPT Female Thread Connection.
  • Both Part Circle & Full Circle adjustments.
  • Jet breaker screw to change the water jet from heavy droplets to fine spray.
  • Recommended pressure: 2.0-5.0kg/cm2.
  • Recommended spacing: up to 36m for higher distribution uniformity.

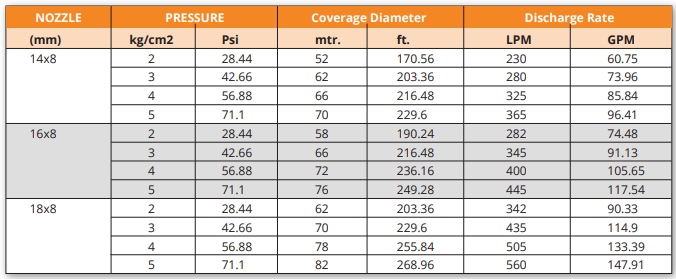

Performance Data

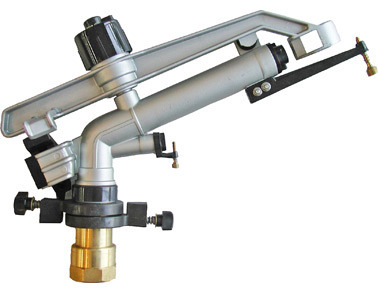

Pelican

Water gun available in 1-1/2" BSP/NPT male threaded connection and 23o trajectory angle. Aluminium die casted body and arm with jet break screw to change the water jet from heavy droplets to fine spray. Suitable for over tree irrigation for bigger crops like sugarcane, oats, maize, tea, coffee, fodder, landscape, etc. and horticulture also for pastures and dust suppression

  • Available in 1-1/2" BSP/NPT male threaded
  • Aluminium Pressure die casted Body and arm.
  • Heavy duty brass nut, tube and nozzles
  • Stainless Steel Pivot Pin, springs and part circle mechanism.
  • Plastic parts mode of Engeering plastic for durability.
  • Jet breaker screw to change the water jet from heavy droplets to fine spray.
  • Recommended Pressure 2.0 - 5.0 kg/cm2 or 30 - 70Psi.
  • Recommended spacing up to 36m for higher distribution uniformity.
  • Trajactory Angle: 23degree

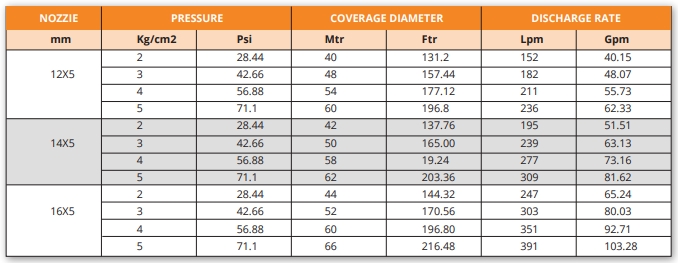

Performance Data:

Penguin

Water gun available in 11/4"” BSP/NPT male threaded connection and 30o trajectory angle. Aluminium die casted body and arm with jet break screw to change the water jet from heavy droplets to fine spray. Suitable for over tree irrigation for bigger crops like sugarcane, oats, maize, tea, coffee, fodder, landscape, etc. and horticulture also for pastures and dust suppression.

Features & Specifications

  • Stainless Steel Pivot Pin, springs, Nut and bolt.
  • Plastic parts made of engineering plastic for durability.
  • Available both Full Circle & Part -circle design.
  • Jet breaker screw to change the water jet from heavy droplets to fine spray.
  • Recommended Pressure 2.0 - 5.0 kg/cm2 or 30 - 70Psi
  • Recommended spacing up to 30m for higher distribution uniformity.
  • Trajectory Angle :30”.

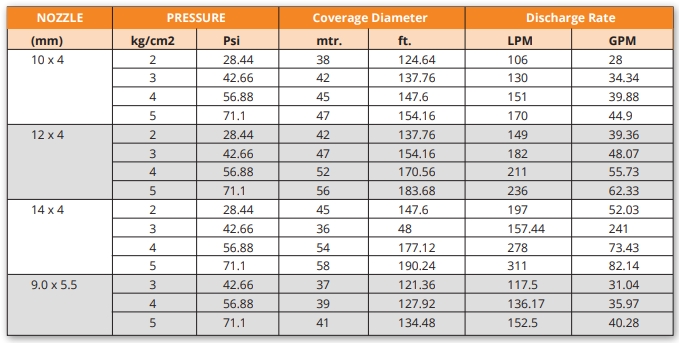

Performance Data

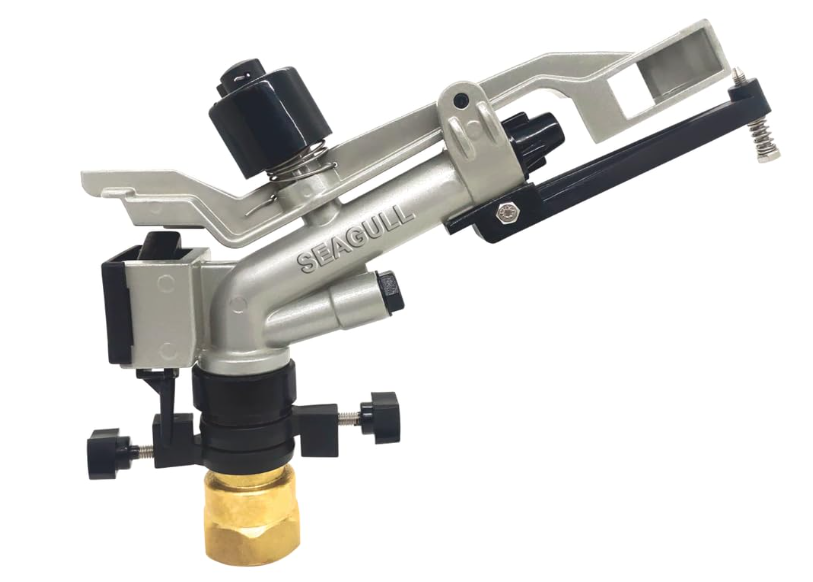

Seagull Raingun

1" Mini Raingun Sprinkler that is highly energy-efficient and specially designed to work even at a low water pressure of 1kg/cm2.

Features & Specifications

  • Available in 1" BSP/NPT Female threaded
  • Pressure die casted Body and arm.
  • Heavy duty brass nut, tube & Diffusor Screw.
  • Stainless Steel Pivot Pin, Lock Pin, Springs, Nut and bolt.
  • Plastic parts made of engineering plastic for durability.
  • Available both Full Circle & Part -circle design.
  • Jet breaker screw to change the water jet from heavy droplets to ¬ne spray
  • Operating Pressure Range 1.0 - 4.0 kg/cm2 or 15 - 60Psi
  • Recommended Pressure 2 kg/cm2
  • Recommended spacing 18m for higher distribution uniformity
  • Trajectory Angle: 280
  • Suitable for Overhead irrigation for bigger crops like sugarcane, oats, maize, fodder and horticulture.
  • It can also be applied to deep irrigations of intensive cultivation such as vegetables.
  • Designed for both full end and irrigation of end edges.

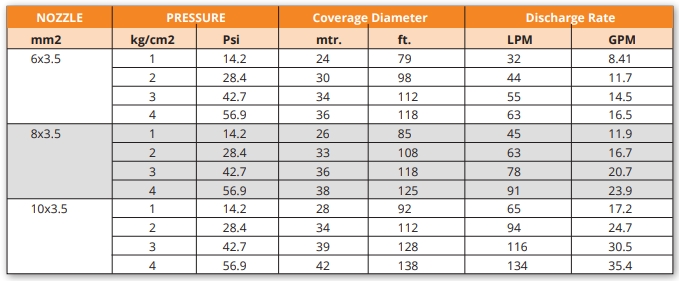

Performance Data
