DRIPPER & EMITTERS

Drip Irrigation Drippers and Emitters

Pioneer Drip Systems offers a range of drip irrigation drippers and emitters designed for controlled water delivery to plants. Our product range includes online pressure-compensating and non-pressure-compensating emitters, pot drippers, tree bubblers and anti-bug caps. These products are suitable for orchards, plantations, nurseries, greenhouses, potted plants and landscape irrigation applications.

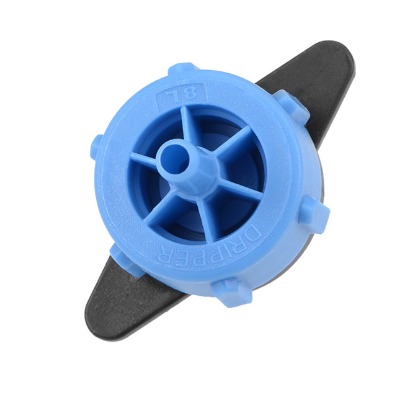

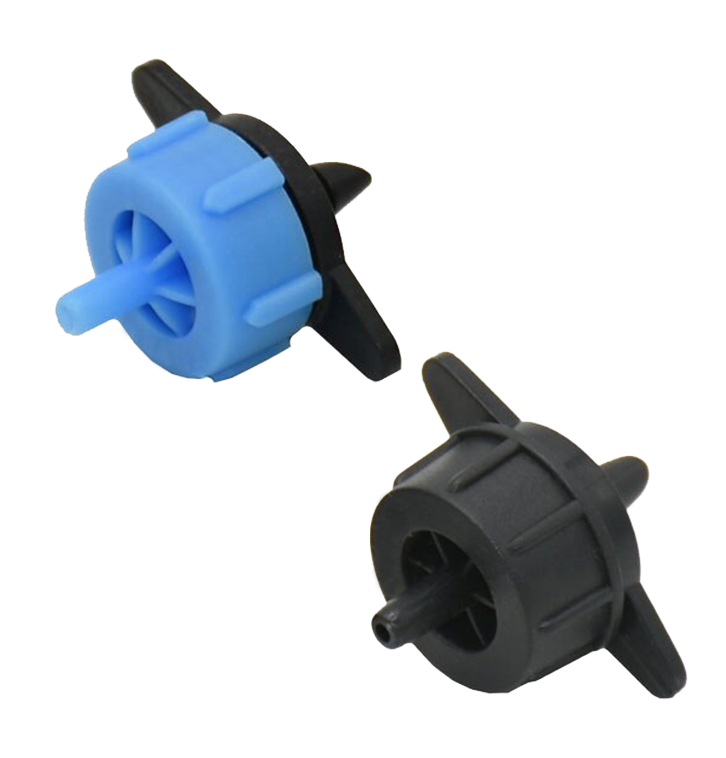

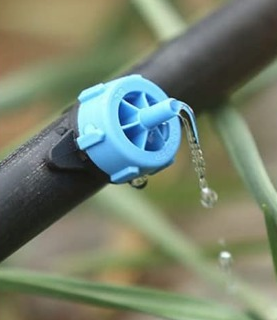

Online Emitters(Drippers)

(Non-Pressure Compensating)

Features & Specifications

  • Online Emitters (Drippers) are made from virgin engineering polymers & are UV stabilized.
  • Uniform discharge an excellent coefficient of variation (less than 5%).
  • Emitters undergo rigid quality tests as per BIS specification IS:13487-1992.
  • Wide turbulent flow path for clog resistance.
  • Suitable for use with 12mm, 16mm, & 20mm plain drip laterals.
  • Openable type and easy to maintain.
  • Available in THREE COLOURS coded flow rate: 4 LPH (BLACK), 8 LPH (BLUE), 14LPH (GREEN)
  • Inlet at an angle to provide easy entry of water into the emitter.
  • Option to use an anti-bug cap.
  • Extended emitter outlet to use micro tube for application needs in future extensions.
  • Recommended to use 100% water-soluble fertilizers or liquid fertilizers for fertigation to avoid clogging of the emitter.
  • Self-piercing barb for direct installation on laterals.

Applications:

Suitable for coconut, Arecanut, Guava, Sapota, Mango, Banana, Orange, andother widespacingplants etc.

Technical Specifications:

Flow Rates:4 LPH, 8 LPH and 14 LPH
Working Pressure: 0.9 Kg/cm2 to 1.1 Kg/cm2
Required Filtration:100 microns

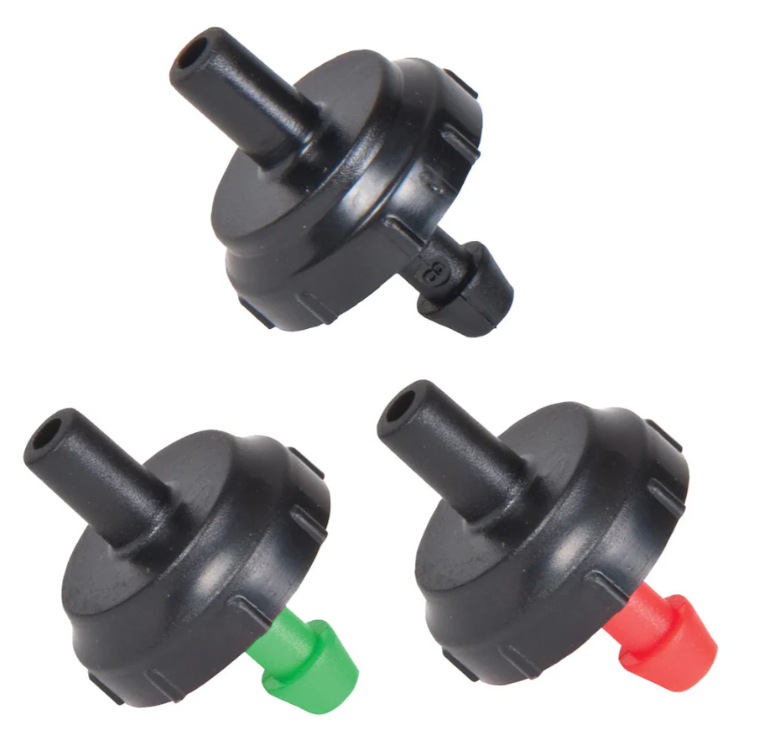

Online Emitters (Drippers)

(Pressure Compensating)

Features & Specifications

  • Made from high-quality UV-stabilized, chemical and fertilizer resistant virgin engineering polymer.
  • Excellent coefficient of variation (less than 5%).
  • Color-coded outlet to identify flow rates.
  • A sealed turbulent flow path PC emitter incorporates a diaphragm that maintains a uniform flow rate over a wide range of operating pressures.
  • Emitters undergo rigorous quality tests as per BIS Specifications IS: 13487-1992.
  • Filter provided at the inlet of the dripper prevents impurities from entering the dripper.
  • Recommended to use 100% water-soluble fertilizers or liquid fertilizers to avoid clogging of the emitter.
  • Option to use an anti-bug cap.
  • Extended emitter outlet to use microtubes for applications needing further extension

Applications:

Suitable for Undulated lands, Hilly regions, Orchard, Tree, Shrubs, Vineyards, Green House irrigation, Vertical gardens and Landscape.

Technical Specifications:

Flow Rates:4LPH
Working Pressure: 1kg/cm2 to 3kg/cm2
Working Pressure: 1.5 kg/cm2
RequiredFiltration:100microns

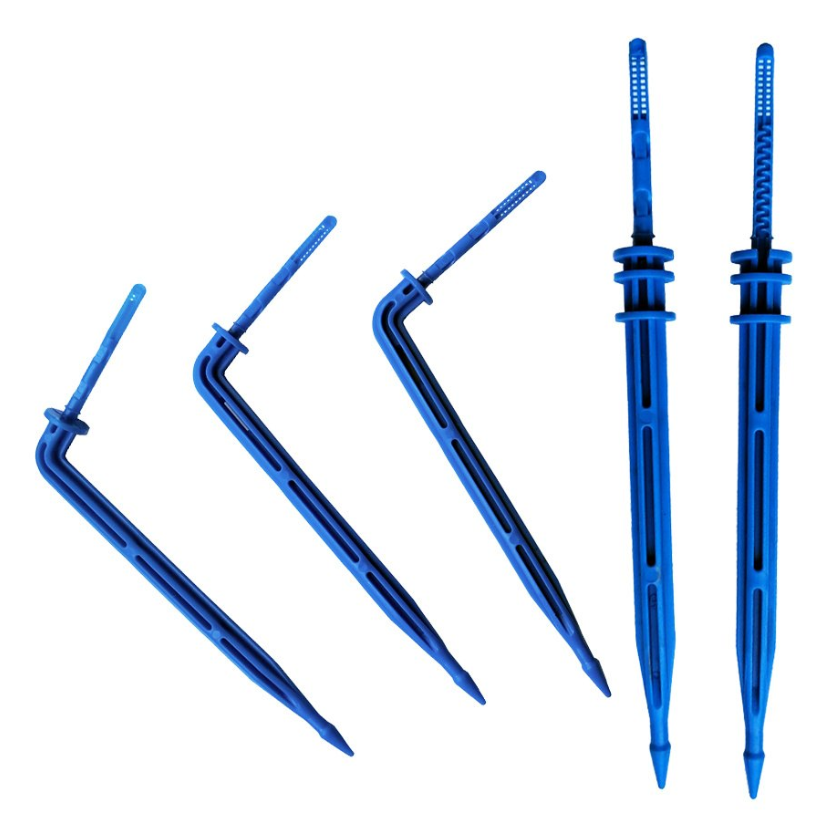

Pot Dripper :

Features:

  • Suitable for Irrigation Planter Box, Potted Plants, Hanging Planter Baskets, Nursery Grow Bags, Vertical Garden/Green Wall Plant Trays etc.
  • Discharge 3.5 LPH at 1kg/cm2.
  • Easy to install and maintain.
  • Uniform watering.
  • Clogresistant.

Technical Specifications :

Pot Drippers to be used with 6mm extension tube of required length and a pin connector with laterals pipes.

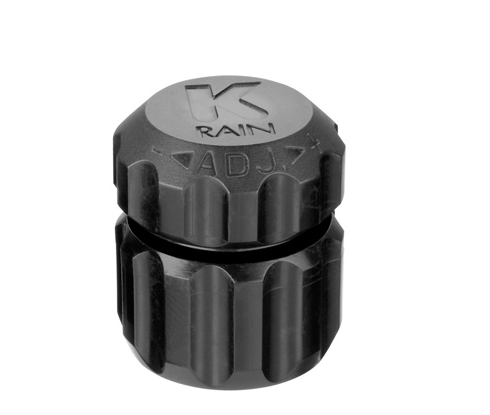

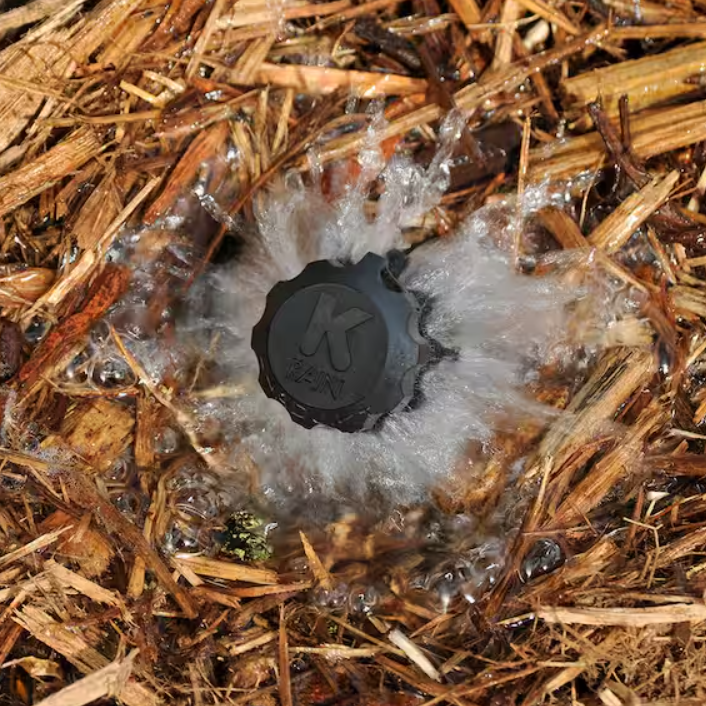

Tree Bubblers :

Specifications :

  • Operating range: Flow: 0 to 5.5 GPM (0 to 1.25 m3/h; 0 to 20 l/m)
  • Spacing: 1 to 3 feet (0.3 to 0.9m)
  • Pressure: 20 to 40 PSI (1.4 to 2.8 Bar )
  • Inlet: ½” Female Thread
  • Flow: 1.0 GPM (0.227 m3/h; 3.8 l/m)

Features :

  • ½” FPT thread screws onto a variety of risers, spray heads and fittings, delivering point-source, pressure compensating flow.
  • Uniform flow throughout a wide pressure range (20 to 40 psi: 1.4 to 2.8 bar)
  • Robust Design - durable plastic construction is UV and impact resistant.

Applications:

Point‐Source Medium Flow Emitters for Watering Large Shrubs and Trees∙
Use as a bubbler on a ½" PVC Riser

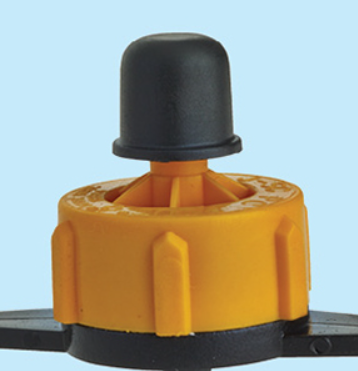

Anti Bug Cap :

Features & Specifications

  • Prevents ants, bugs, and other debris from entering and clogging the emitter outlet.
  • Acts as a diffuser to create a bubble effect and prevent water jetting.
  • Suitable for both NPC (Non-Pressure
  • Compensating) and PC (Pressure Compensating) online emitters.
