POP-UP SPRINKLERS

Pop-Up Sprinklers for Gardens, Lawns and Landscapes

Pioneer Drip Systems offers pop-up sprinklers for efficient lawn, garden and landscape irrigation. Designed to remain concealed below ground when not in use, pop-up sprinklers rise during watering and retract afterward, helping maintain a neat landscape. They are suitable for residential gardens, commercial lawns, parks and landscaped areas.

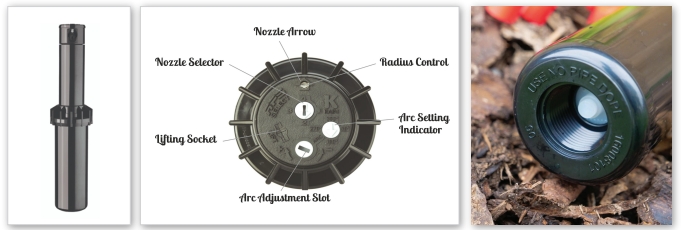

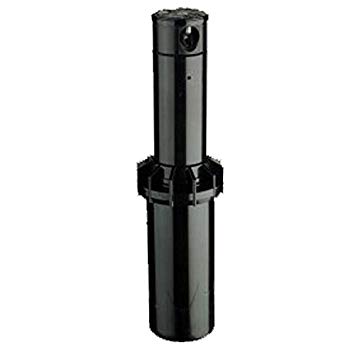

RPS Select Gear Driven

  • Radius : 32-36(9.8 to 11.0m).
  • Flow rate : 1.2.6.1 GPM(4.5 TO 23.1 l/m).
  • Recommended operating pressure : 25-75 psi (2.0 to 5.0 bars).
  • Standard 4” pop up for lawn areas.
  • ¾” female-threaded inlet.
  • Optional drain check valves controls up to 10’ of elevation change. : 1.4-11.6 mm/hr.

Features

  • Four built-in selectable nozzles to match different Arc setting [#1-#4].
  • Adjustable are (40”-360”) All adjustments made from the top-wetor dry No special tools needed.
  • Balanced precipitation rates when nozzle setting matched to arc.
  • Precision-enginnered nozzle for water saving efficiency.
  • Standard rubber cover.
  • Proven water-lubricated gear-drive design common to Rsp 75 Series.
  • Large dirty-water filter screen for compatibility with reclaimed and Recycled water sources. Internal assembly inchanges with Hunter PGP Motors.
  • Effluent / reclaimed water identification cover available.

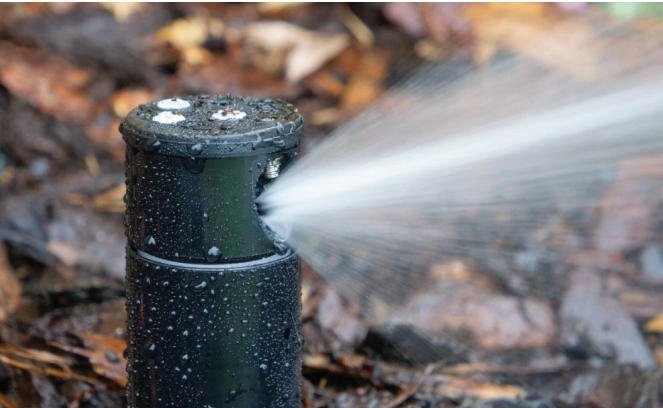

Super Pro Pop Ups HT–9KSPR

  • ¾” Female Tread Intet :
  • Arc Adjustment Range : 40” to Continuous 360” .
  • Flow Range : 1.7-36.0 ltr/min.
  • Pressure Range : 2.0-5.0 kg/cm” .
  • Precipitation Rate : 1.4-11.6 mm/hr.
  • Overall Height (PoppedDown) : 71/2”.
  • Recommended Spacing : 8.5-13.4 mtr.
  • Radius : 7.9-14.9mtr.
  • Nozzel Trojectory : 26”.
  • Low Angle Nozzle Trajectory : 26”.
  • Standard and Low Angle Nozzle : Inciuded.
  • Riser Height : 5”.

Features

  • Revolutionary Patented Easy Arc Set-Simplified arc set allows for wet or dry adjustment in seconds.
  • 2N1 Adjustable or Continuous Rotation-Provides a full range of Adjustment from 40”to a full360”.
  • Pantended Art Set Degree Markng- Shows the degree of adjustment
  • Time Proven Patended Reversing Mechanism- Assures continuous reverse and return...over a 35z year history.
  • Ratcheting Riser-Allows for easy adjustment of your left starting position with a simple turn of the riser.
  • Rubber Cover - Seals out dirt and increases product durability.
  • Optional Check Valve - Prevents low head drainage.
  • Rugged Stainless Steel Spring - .093 gauge 302 stainless steel spring extends the life of the rotor.

Performance Data

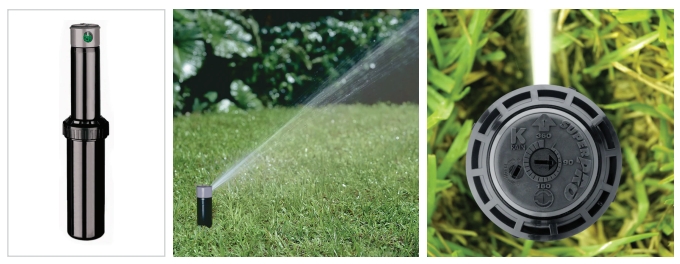

RPS Select Gear Driven Rotors HT–9KRPSS

  • Four built-in selectable nozzles to match different arc settings. (#1-#4).
  • Adjustable arc (40°-360°) All adjustments made from the top-wet or dry. No special tools needed.
  • Balanced precipitation rates when nozzle setting matched to arc.
  • Precision-engineered nozzles for water-saving efficiency.
  • Standard rubber cover.
  • Proven water-lubricated gear-drive design common to RPS 75 Series.
  • Large dirty-water filter screen for compatibility with reclaimed and recycled water sources.
  • Internal assembly interchanges with Hunter® PGP® rotors
  • Low Angle Nozzle Trajectory : 26”.
  • Low-pressure operation
  • Effluent / reclaimed water identification cover available.

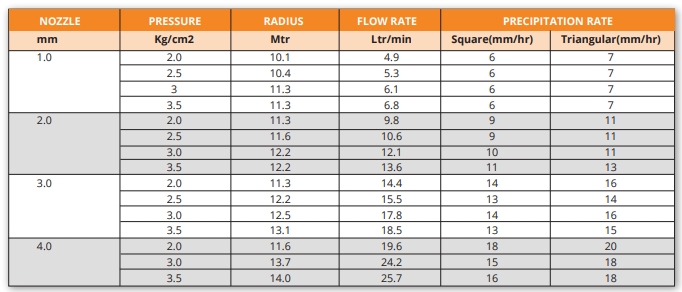

Performance Data

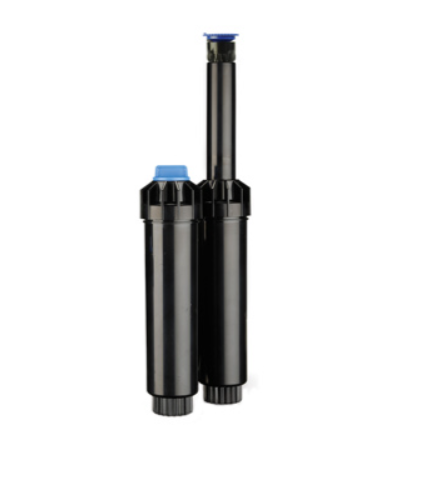

NP Spray Pop-Up Sprinkler

Features :

  • Available in 2” and 4” Models-Provides flexibility in system design.
  • Accepts female threaded nozzles
  • Stainless Steel Retraction Spring-Provides reliable retraction of the riser in all soil conditions.
  • Ratcheting Riser-Allows for easy pattern alignment by turning the riser.
  • Co-Molded Wiper Seal - Ensures leak free, full pop-up operation even under low pressure situations.
  • Narrow Profile Body - Easy to retrofit with existing systems.
  • Two year limited warranty.

Specifications:

  • ½” Female threaded inlet 2
  • Pressure Rating : 1.5 -3.5 Kg/cm
  • Flow Range : 1.9 - 20.4 ltr/min
  • Precipitation rate : 7.6 - 101.6 mm/hr
  • Nominal Radius : 2.7 - 5.5 mtr

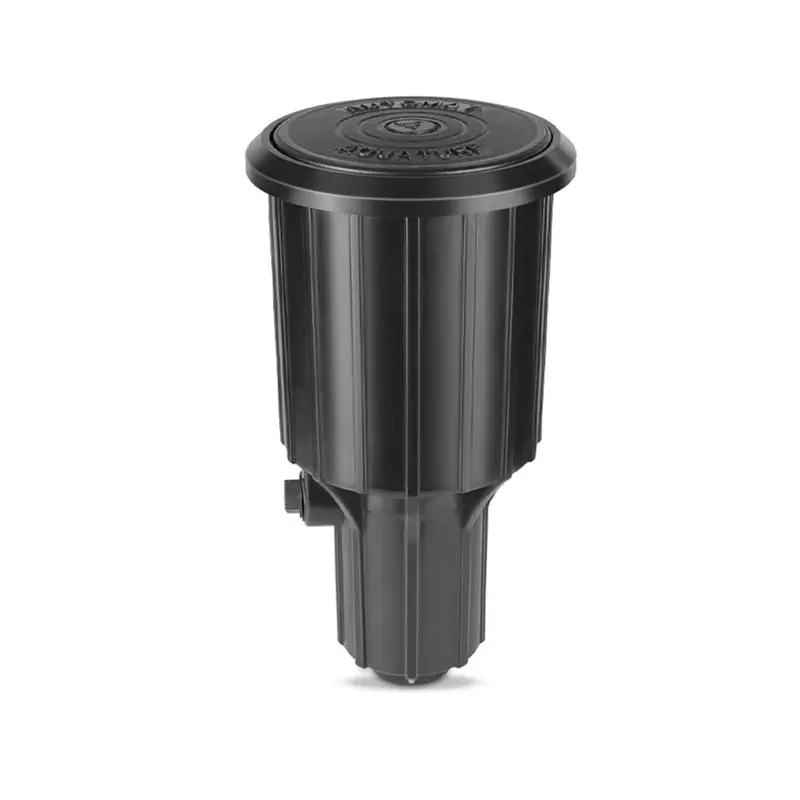

AQUATURF Pop-Up Sprinkler

Pop up sprinkler for underground installation in landscaping, public parks and public lawn irrigation with interchangeable, bayonet colour coded nozzles. Its heavy-duty plastic case with reinforced ribbed design is great for excellent gripping. Adjustable to full-circle or part-circle with diffuser screw for fine droplets and throw control.

Features :

Interchangeable, bayonet color coded nozzles.
Heavy-duty plastic case with reinforced ribbed design for excellent gripping.

  • Adjustable to full-circle or part circle.
  • Diffuser screw for fine droplets & throw control
  • Double-weighted arm for balance and smooth rotation
  • Sand resistant pressure activated wiper seal
  • Excellent distribution uniformity.
  • ½” & ¾” female threaded bottom inlet & ½” female threaded side inlet
  • Having provision of bottom inlet filter.

Technical Specifications :

  • Discharge :456-1192 L/H
  • Diameter: 22.5 – 25.5 mtr
  • Operating Pressure :2.0-4.0 kg/cm2
  • Bottom Inlet connection ½” & ¾” female threaded
  • Nozzles available in size 2.9, 3.2, 3.5 & 4.0 mm
  • Trajectory Angle: 250
  • Full – Circle (360o) or Part –circle (adjustable arc from 150 to 3450)
  • Spacing between Sprinkler: upto 12m for excellent uniformity.

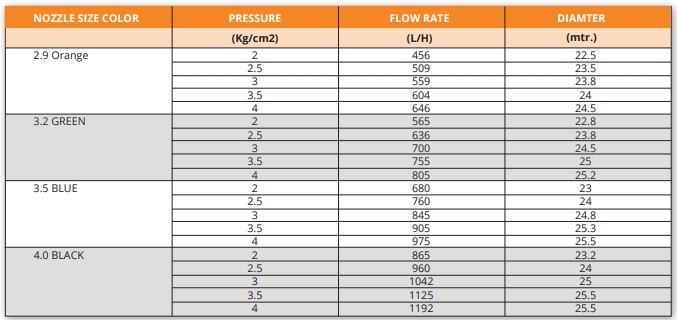

Performance Data :
