Poultry Cooling Systems

Inverter Rotors

  • Bayonet connection
  • 2 different swivels.
  • 8 Color-Coded nozzles for flow rates from 24 - 230 LPH
  • Excellent Distribution uniformity ranging from spacing: 3x3 , 3.5x3.5 , 4.0x4.0 , 4.5x4.45 & 5.0x5.0

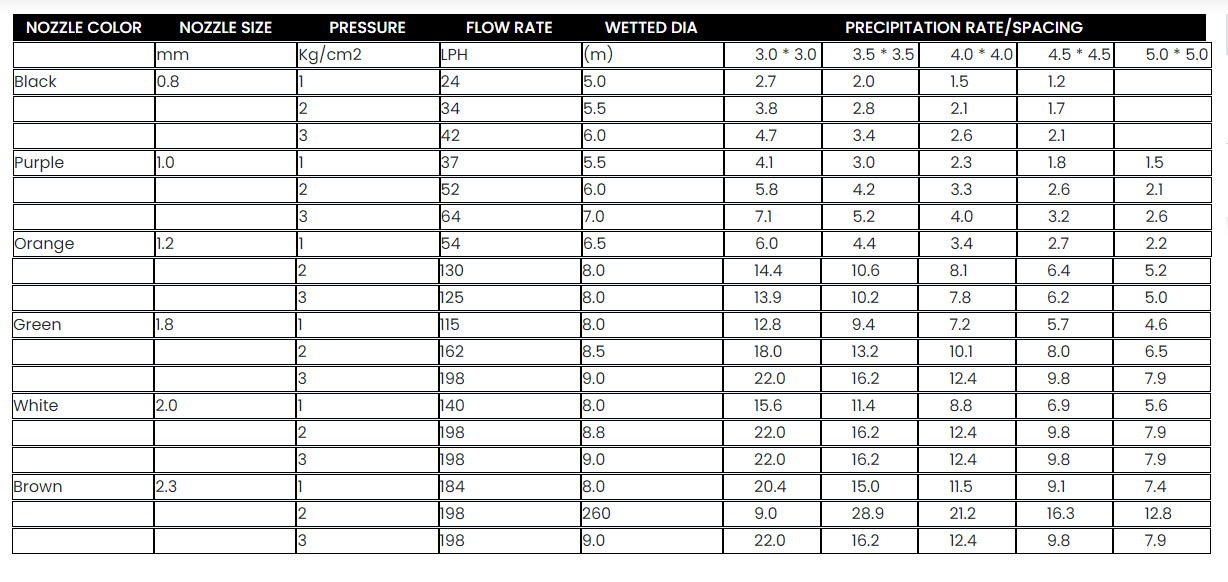

Performance Data :

Mist Sprayer

  • Bayonet connection
  • Mist static swivel in Black Color
  • 6 Color-Coded nozzles for flow rates from 24-198LPH
  • Excellent Distribution uniformity ranging from spacing: 1.5x1.5 & 2x2

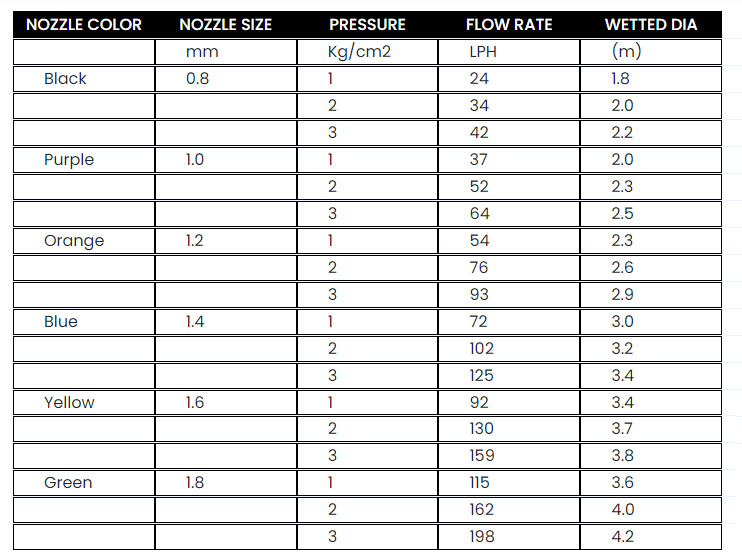

Performance Data :

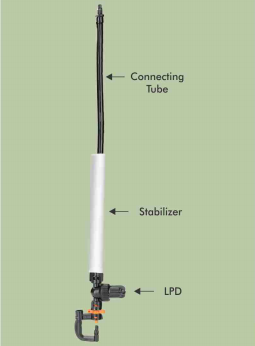

Micro Sprinkler

Micro Sprinkler operate at low water pressure levels and ensure irrigation of plant foliage and also wherever overhead irrigation is needed, especially in vineyards, orchards and fruit and vegetable fields. Delivering gentle droplets in a consistent pattern. Our Sprinkler ensure low precipitation rates, over longer irrigation times with lower levels of runoff and wastage. They can be installed in both closed and open environments such as greenhouse, vineyards, fields and livesstock farms.

Features & Specifications :

  • Suitable for clay floor & cemented floor.
  • Cools the livestock directly.
  • Equal distribution of water during a short time period,this gives very good evaporation cooling to the livestock.
  • Softly showers livestock according to a periodic time schedule set by the owner/supervisor.
  • Makes sure the cow shed & surrounding floor stays dry.
  • Has an anti-leak value which prevents water seepage when the system closes down.
  • Can also be used cooling other livestock.
  • Water evaporates due to local heat, prevents feed and fodder wetting.

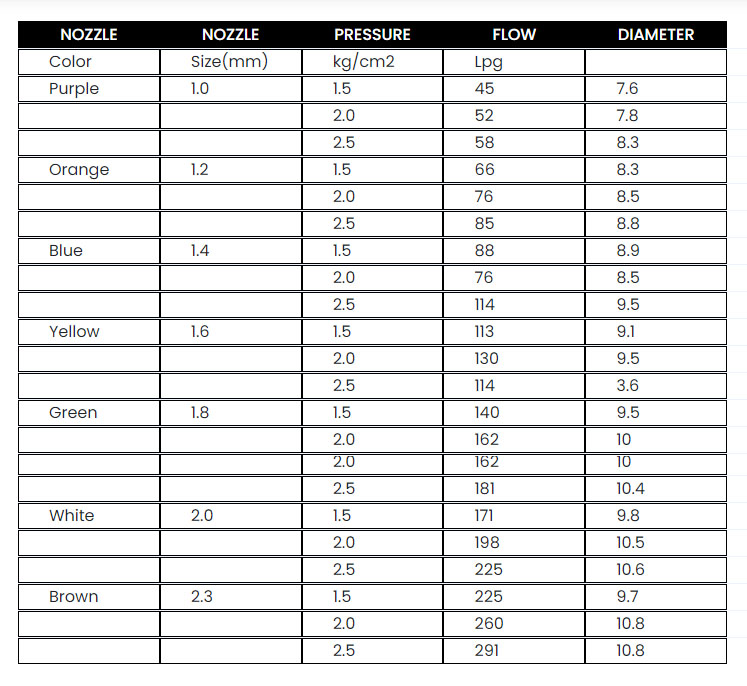

Performance Data :

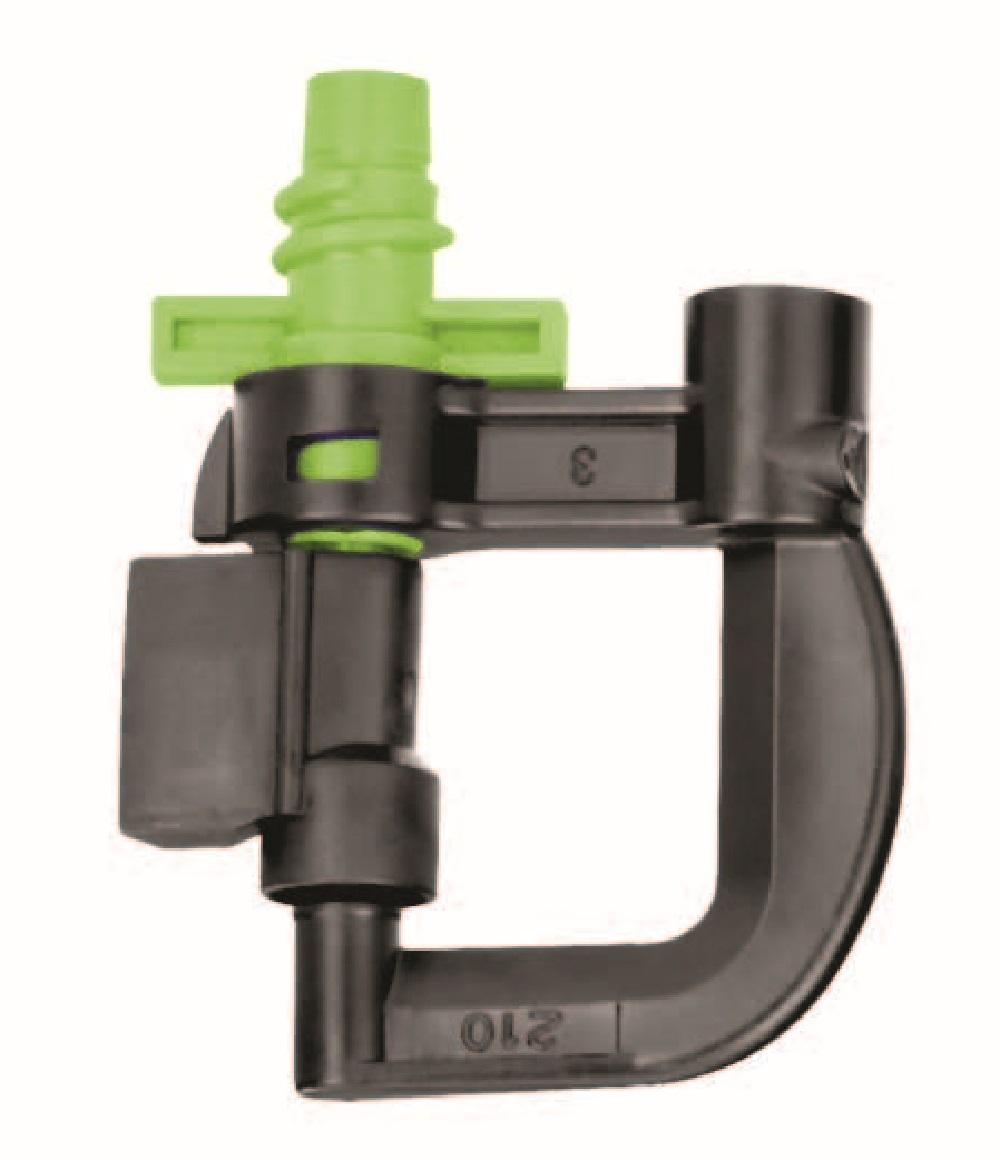

AQUAMIC / AQUAFOG

Fine drops for creating uniform cloud, useful for irrigation of plants in shade nets, nurseries, greenhouses and can also be used in poultry for cooling of birds directly.

Features & Specifications :

  • Operating Pressure Range: 11/2 to 21/2 kg/cm2
  • Fine drops create uniform cloud
  • Recommended Spacing:3 to 5 mtr
  • Coverage Diameter:7.6 to 10.8 mtr
  • Discharge Flow Rates: 45 to 290 ltr/hr
