DRIP IRRIGATION

DRIP IRRIGATION

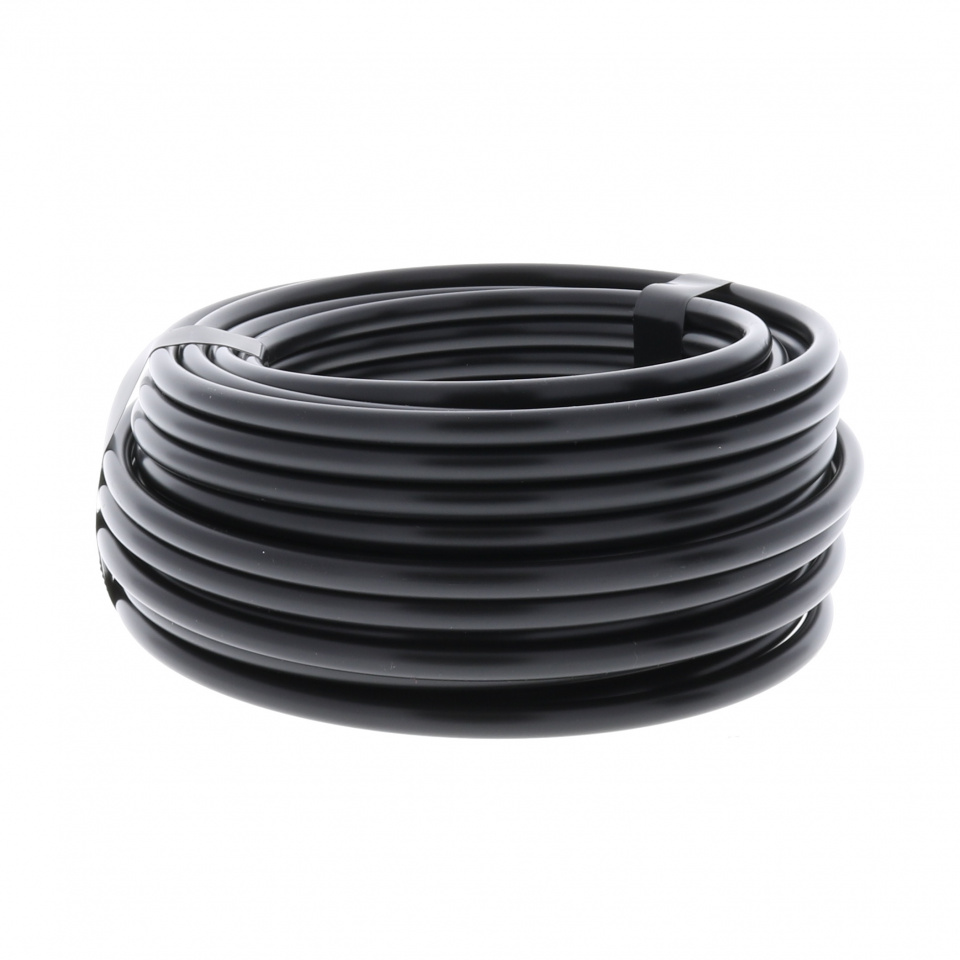

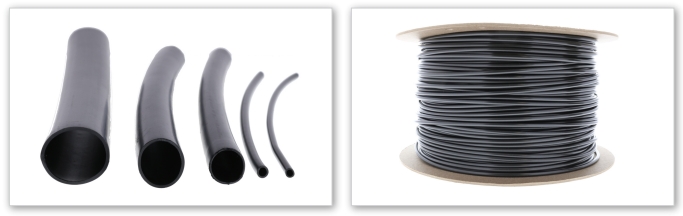

Plain Lateral (Online Drip Pipe):

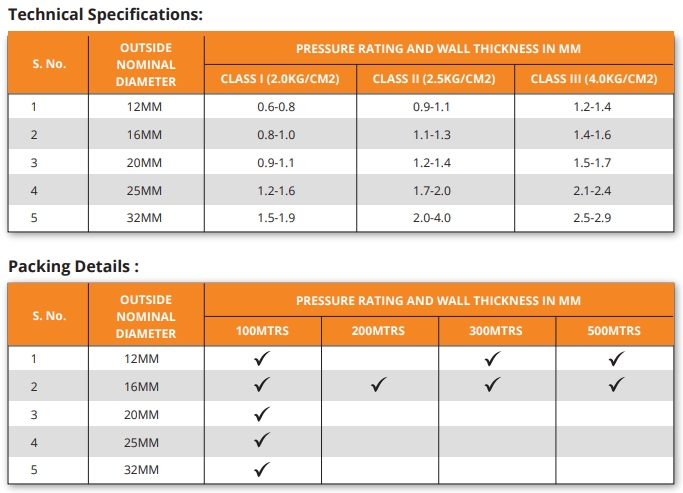

Features & Specifications

  • Lateral Pipes are the life-line of drip irrigation system.
  • Conforms to IS: 12786-2024.
  • Made from 100% virgin high grade polyethylene. Product details are laser marked at equal intervals with time stamping of Production traceability.
  • Suitable for surface or sub surface installation.
  • Green line on laterals for easy aligned installation of online emitters and emitting devices.
  • Smooth internal surface to reduce the friction loss.
  • Reliable, Durable & Trustworthy.
  • Compact coiling for easy stacking and shipping.
  • UV stabilized to prevent environmental stress cracking.
  • Undergoes rigorous quality test at every stage of Manufacturing before supply.

Applications:

Suitable for coconut, Arecanut, Guava, Sapota, Mango, Banana, Orange, and other wide spacing plants etc.

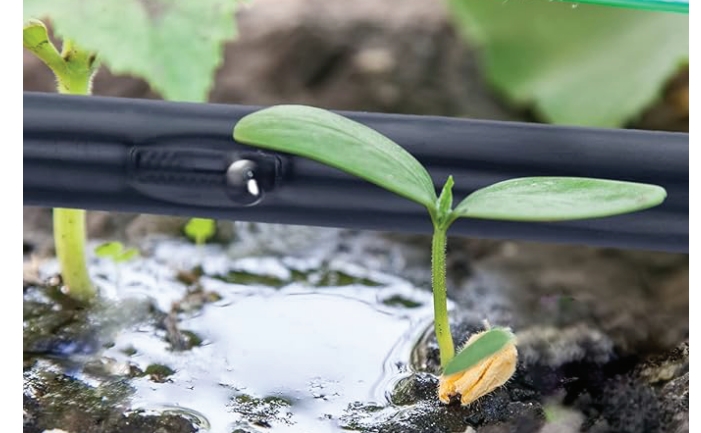

Cylindrical Drip Line (Inline Drip Pipe):

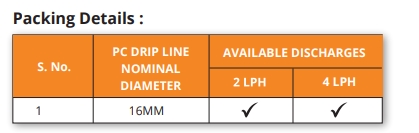

(Pressure Compensating (PC) & Non-Pressure Compensating (NPC))

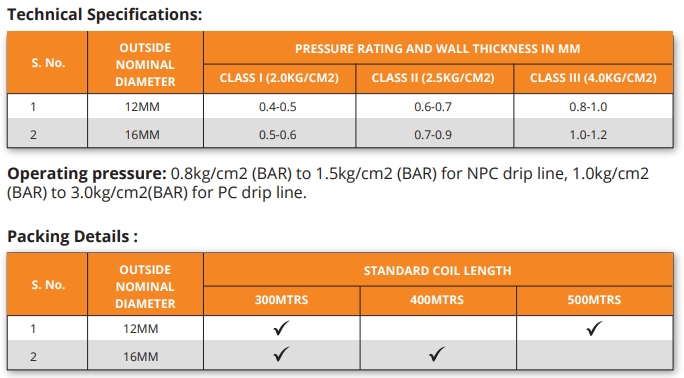

Features & Specifications

  • Emitting pipes (Drip lines) are made from 100% raw materials.
  • Conforms to IS: 13488 – 2008.
  • UV stabilization to prevent environmental stress cracking.
  • Wide range of discharge from 2LPH, 4LPH & 8LPH in field conditions.
  • Excellent coefficient of variation (less than 5%) Highly resistant to chemicals and fertilizers.
  • Option of 2/4 outlets for emitter enhancing uniform distribution of water along the length.
  • Clog resistant due to wide flow path Emitters.
  • Standard spacing’s of Emitters depending on individual Customer requirement starting from 20cm onwards.
  • Unique customized group spacing option available for wide spaced crops.

Applications:

Suitable for vegetable’s, sugar cane, banana, cotton, chilies and all kinds of close spaced field crops Fruit and Orchard Crops, Green houses, Landscape irrigation etc.,

Spacing:

Minimum Emitter Spacing 20cm and above as per customer’s requirement. Optional group spacing for wide spaced crops available on request.

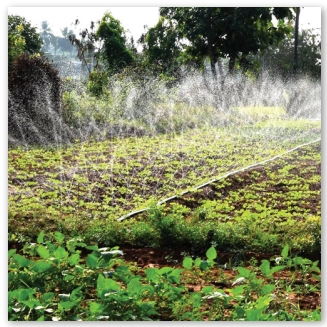

Rain Pipe:

Rain-pipe is substitute option for sprinkler irrigation which sprays same quality of water to crops. ... Rain Pipe is made with HDPE fabric. It is Multilayer Woven Laminated Lay Flat Rain Pipe. With help of appropriate water pressure rain-pipe can spray water up to 10 to 15 feet on both sides.

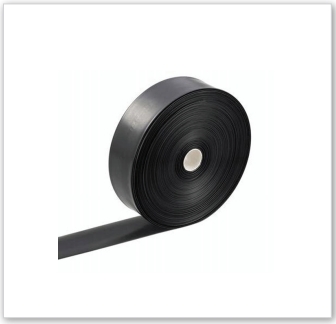

Drip Tape:

Drip Tape is a pipeline with a dripper manufactured inside the pipeline. It is a thin-walled tube rather than a structure pipe, with the common wall-thickness being 0.2mm. Commonly a seasonal product used in market gardens or rows of crops. It is also available 0.3 mm /0.4 mm and the life span is extended.

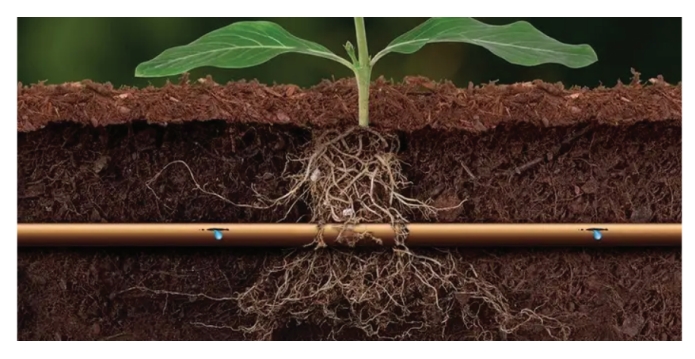

Sub Surface Drip Pipe:

Features copper shield technology that naturally protects the emitters from root intrusion without chemicals. This new sub-surface tubing is designed for long-lasting, low-maintenance performance in the garden or landscaping. Other professional grade quality features include extra flexibility for kink-free installation, plus unmatched resistance to chemicals, algae growth and UV damage.

Features:

  • Waters uniformly throughout the planting area, improving plant health and growth.
  • Rugged and flexible, easy to unroll and stake in the garden, flower bed, ground cover or other landscaped areas.
  • Works like soaker hose - only better.
  • Designed for above ground installation.
  • Brown color.
  • Ideal for landscape
